SWIN® Safety Gate-METALTEC

SWIN® Safety Gate

SWIN® Safety Gate is constructed using high-quality Q235 galvanized steel pipe and galvanized wire. The panel frame material consists of 20*20*1.5mm hot dip galvanized pipes, which effectively guarantees the overall strength of the product and enhances its safety measures. The door body and the door post are connected through high-strength hinge hardware accessories, resulting in a stable structure and smooth rotation. Nano-ceramic pretreatment technology, in conjunction with AkzoNobel polyester powder, guarantees exceptional anti-corrosion characteristics. The products have obtained certification from TUV, a renowned organization known for conducting rigorous pendulum impact resistance tests.

Hotline:+086-311-8586 0535

Product Features

> SWIN® Safety Gate is constructed using high-quality Q235 galvanized steel pipe and galvanized wire. The material used for the panel frame is a 20*20*1.5mm hot dip galvanized pipe, which effectively guarantees the overall strength of the product. The galvanized wire exhibits a minimum tensile strength of 400MP, while the solder joint demonstrates a superior tensile strength exceeding 2500N. The anti-climbing material, with a mesh size of 100*20, ensures high safety measures.

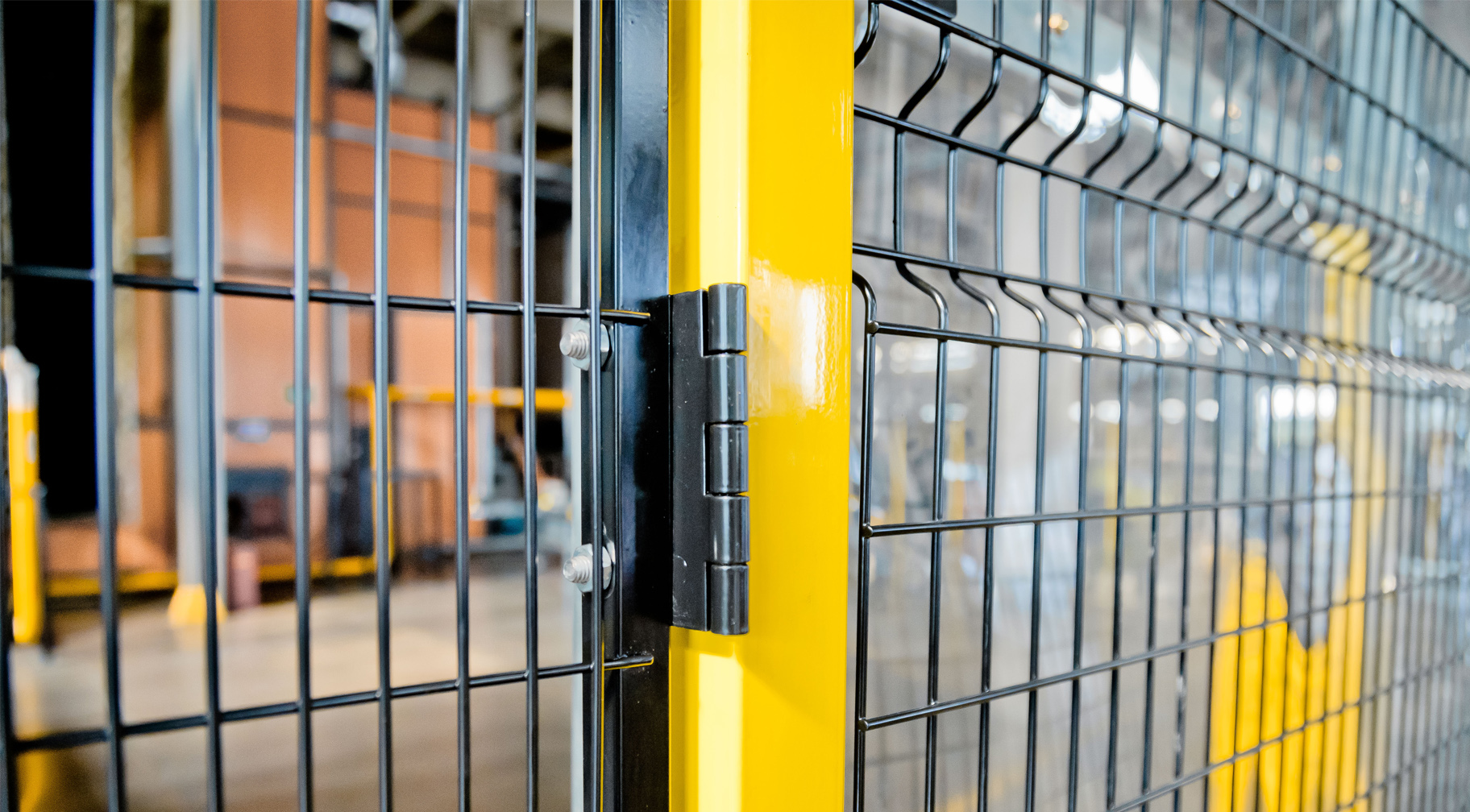

> The door body and the door post are connected through high-strength hinge hardware accessories, resulting in a stable structure and smooth rotation.
> The door posts are constructed using Q235 hot dip galvanized steel pipe material of superior quality.
> Advanced nano-ceramic pretreatment technology, in conjunction with AkzoNobel polyester powder, guarantees the attainment of superior anti-corrosion properties of high quality.
> The product has obtained certification through TUV's professional pendulum impact resistance test.
> Simple structure design of the product is simple and conforms to the safety protection standards. Additionally, it features a bright color. Regular black RAL9005 and yellow RAL1021 are the colors being referred to. Customizable styles and colors can be readily tailored to individual preferences.

SWIN® Safety Gate

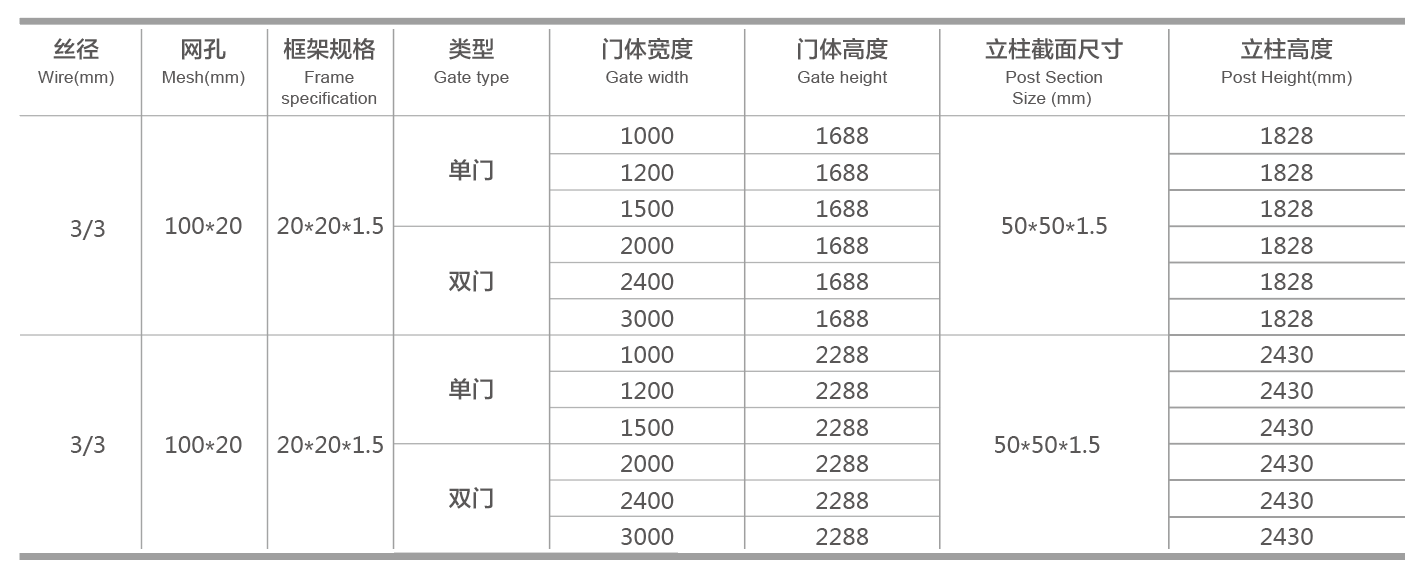

Technical specifications

TUV impact test
